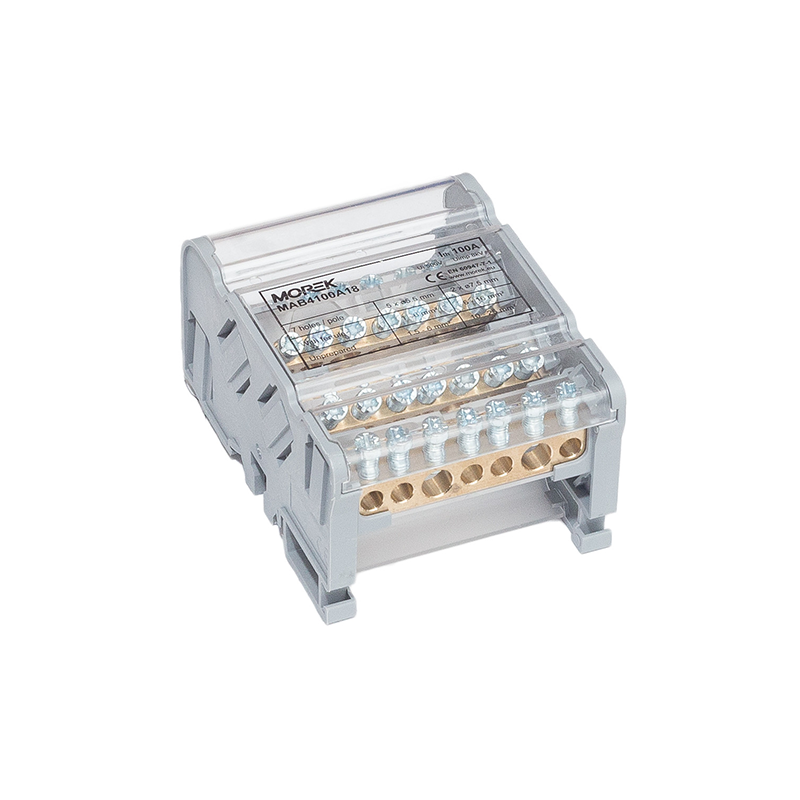

Hargnemisplokk 4P 100A

Hargnemisplokk 4P 100A

  • Wire material Cu
  • Cross-section min. (mm²) 1,5
  • Cross-section max. (mm²) 25
  • Input wire min. (mm²) 2 x 10
  • Input wire max. (mm²) 2 x 25
  • Output wire min. (mm²) 5 x 1,5
  • Output wire max. (mm²) 5 x 6
  • Number of connections 7
  • Nominal current (A) 100
  • Nominal voltage (V) 500
  • Material Brass, galvanized steel, polyamide PA66, polycarbonate
  • Mounting method DIN rail, screw
  • Item width (mm) 97
  • Item length (mm) 71
  • Item height (mm) 52
  • Rated surge voltage (kV) 8
  • Short-circuit resistance (kA/1s) 3
  • Tightening torque (Nm) 2,5 Nm
  • Certification EN 60947-1; EN 609947-7-4
  • Flame resistance UL94 V0
Kood Kirjeldus KM-ta KM-ga ühik
MAB4100A18
 Hargnemisplokk, 4P , 100A-7, 2X25+5X6mm² , Morek 8,20 € 10,00 € tk
Kood: MAB4100A18
Hargnemisplokk, 4P , 100A-7, 2X25+5X6mm² , Morek
KM-ta: 8,20 €
KM-ga: 10,00 €
tk
×
